如何在 Matplotlib 直方图中手动设置 bin 的大小
要绘制直方图,我们使用 hist2d()
函数,其中将 bin
(箱数)n
作为参数传递。我们可以通过计算所需的箱数来设置箱的大小,以保持所需的大小。
将 bin 边界作为 hist()
函数的参数
hist
函数的语法:
hist (x,
bins: NoneType=None,
range: NoneType=None,
density: NoneType=None,
weights: NoneType=None,
cumulative: bool=False,
bottom: NoneType=None,
histtype: str=builtins.str,
align: str=builtins.str,
orientation: str=builtins.str,
rwidth: NoneType=None,
log: bool=False,
color: NoneType=None,
label: NoneType=None,
stacked: bool=False,
normed: NoneType=None,
data: NoneType=None,
**kwargs)
为了在 Matplotlib 中设置 bin
的大小,我们传递一个带有 bin
边界而不是 bin
数量的列表作为 bin
参数。
import numpy as np
import numpy.random as random
import matplotlib.pyplot as plt
data = np.random.random_sample(100) * 100.0
plt.hist(data, bins=[0, 10, 20, 30, 40, 50, 60, 80, 100])
plt.xlabel('Value')
plt.ylabel('Counts')
plt.title('Histogram Plot of Data')
plt.grid(True)
plt.show()

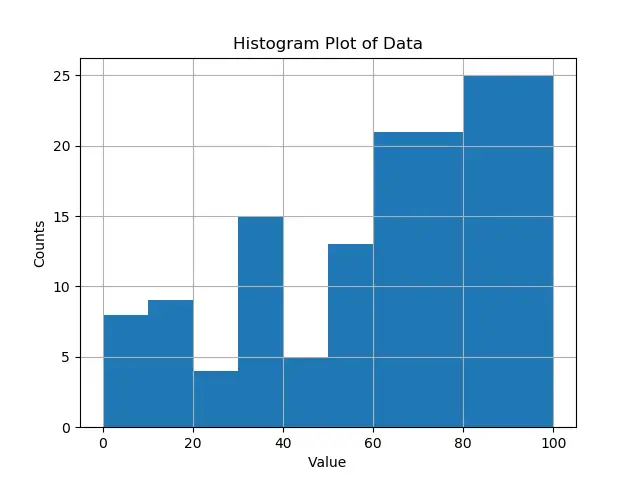

在上面的示例中,我们手动设置 bin
边界,并间接设置 bin
的宽度。我们也可以使用 np.arange
找到等距的边界。

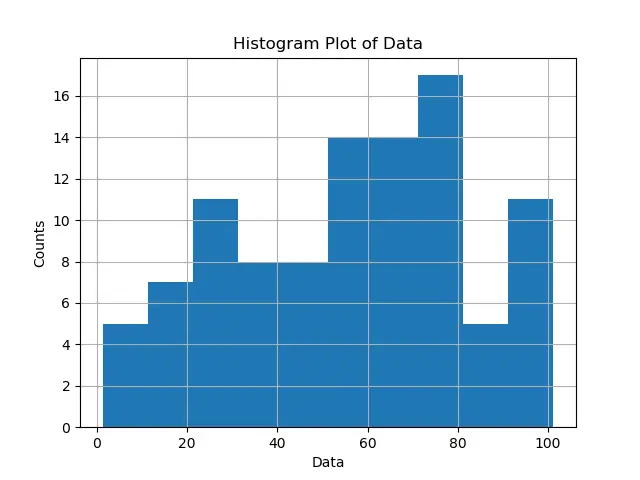

为了使 bin 等距分布,我们可以使用 np.arange
查找等距边界。
import numpy as np
import numpy.random as random
import matplotlib.pyplot as plt
binwidth=10
data = np.random.random_sample(100) * 100.0
plt.hist(data, bins=np.arange(min(data), max(data) + binwidth, binwidth))
plt.xlabel('Data')
plt.ylabel('Counts')
plt.title('Histogram Plot of Data')
plt.grid(True)
plt.show()

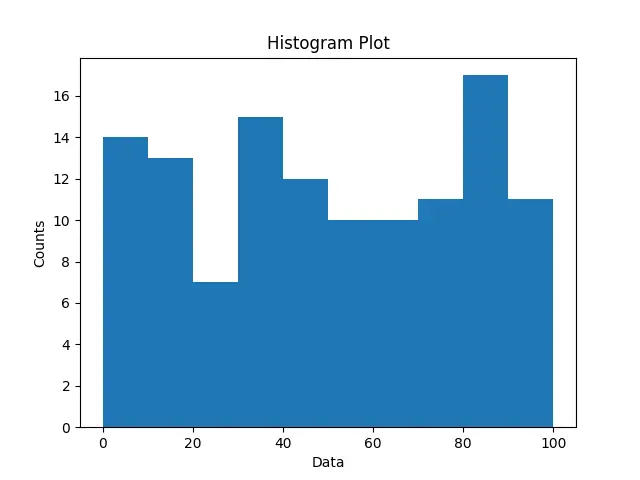

从所需宽度计算 bin 的数量(箱数)
为了找到 bin
的数量,我们计算最大值和最小值之间的差除以所需的 bin
(箱)宽度。
import numpy as np
import matplotlib.pyplot as plt
def find_bins(observations, width):
minimmum = np.min(observations)
maximmum = np.max(observations)
bound_min = -1.0 * (minimmum % width - minimmum)
bound_max = maximmum - maximmum % width + width
n = int((bound_max - bound_min) / width) + 1
bins = np.linspace(bound_min, bound_max, n)
return bins
data = np.random.random_sample(120) * 100
bins = find_bins(data, 10.0)
plt.hist(data, bins=bins)
plt.xlabel('Data')
plt.ylabel('Counts')
plt.title('Histogram Plot')
plt.show()
